Features:
1. High brightness: The T-REX series outdoor LED display has a brightness of up to 5500-6300cd/m², ensuring clear image display even in direct sunlight.
2. High contrast: The display offers a contrast ratio of up to 5000:1, delivering more vivid and realistic image effects.
3. High refresh rate: The refresh rate is 3840Hz, effectively avoiding image flicker and improving viewing comfort.
4. High protection level: The display has an IP65 protection level, effectively preventing dust, rain, and other elements from entering the display, ensuring normal operation.
5. Energy-saving: The T-REX series outdoor LED display adopts efficient energy-saving technology, with an average power consumption of only 248W/m², reducing operating costs.
Application:

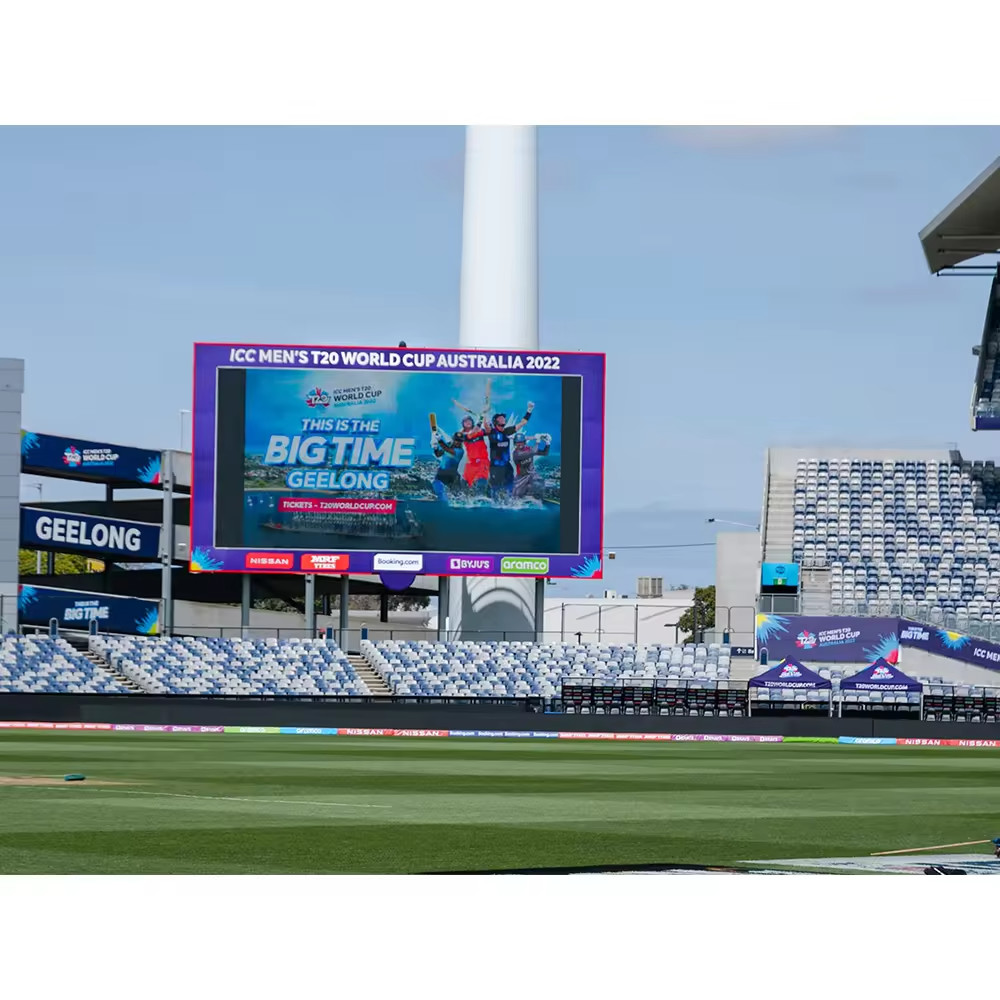

- Sports venues: The TREx series displays can be used in sports venues such as football fields and basketball courts to provide the audience with clear game pictures and real-time score information.

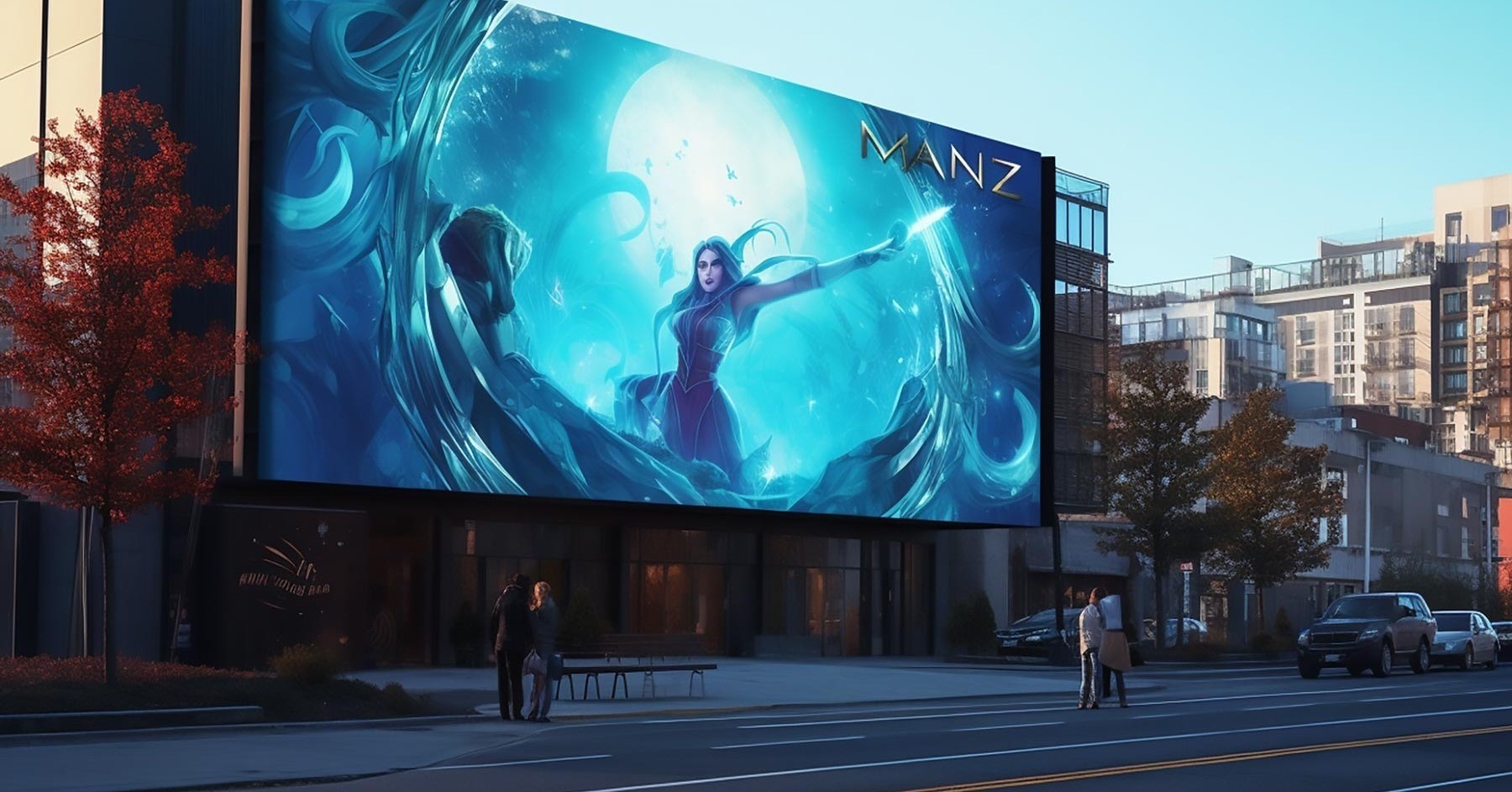

- Commercial plazas: On commercial plazas, the Trex series displays can play advertisements, promotional videos, etc., to attract the attention of customers and improve brand awareness.
- Stage performances: The Trex series displays can be used as stage backgrounds to add visual effects to the performance and create a more shocking atmosphere.
- Transportation hubs: At transportation hubs such as airports, railway stations, and subway stations, the Trex series displays can play flight information, train schedules, etc., to provide convenience for passengers.
- Smart cities: The Trex series displays can be used in the construction of smart cities, such as displaying urban traffic conditions, environmental monitoring data, etc., to provide support for urban management.
Description:
1. The T-REX series outdoor LED display adopts SMD technology, featuring high brightness, high contrast, and high refresh rate.
2. The pixel pitch ranges from 4.4mm to 10mm, allowing for different options based on specific needs.
3. The brightness range is between 5500-6300cd/m², and the gray scale level is 14bit, enabling the display of fine and realistic image effects.
4. The viewing angle of the display is 140°/140°, allowing for viewing from different angles without color shift.
5. The display utilizes an efficient heat dissipation design to ensure stable operation in high-temperature environments.
| Model | TR 4 | TR 6.67 | TR 8 | TR 10 |
| Pixel Pitch(mm) | P4 | P6.67 | P8 | P10 |
| Pixel Density(dot/㎡) | 62,500 | 22,500 | 15,625 | 10,000 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Module Size(mm*mm) | 480X320 | 480X320 | 480X320 | 480X320 |
| Module Resolution(dot*dot) | 120X80 | 72X48 | 60X40 | 48X32 |

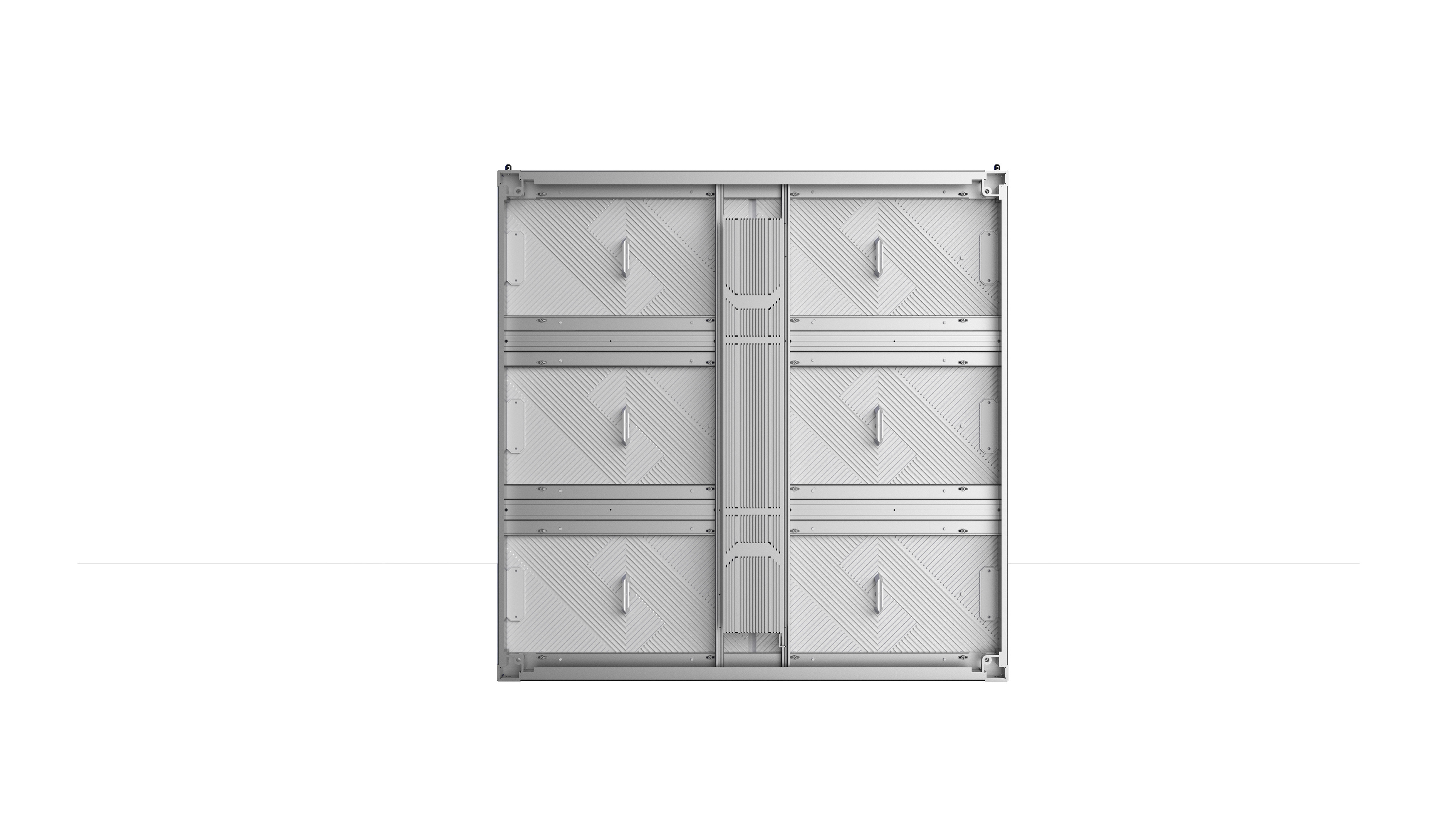

| Cabinet Size(mm*mm*mm) | 960x960x110 |
| Cabinet Resolution(dot*dot) | 240x240 | 144x144 | 120x 120 | 96x96 |
| Cabinet Material | Aluminum |
| Cabinet Weight(kg) | 22 |
| Brihtness(cd/㎡) | 6000-6300 | 6000-6300 | 6000-6300 | 6000-6300 |
| Refresh Rate(hz) | 3840 |
| Gray Scale(bit) | 14 |
| Viewing Angle (HA) | 140/140 |
| Max Power Consumption(w/㎡) | 750 |
| Ave Power Consumption(w/㎡) | 248 |
| Input Voltage(V) | 100~240 |
| Working Temperature(℃) | -20~+60 |
| Operation Humidity(rh) | 10%-85% |
| Ingress Pritection | IP65 |
| Working Environment | Outdoor |
| Life Span(H) | 100,000 |
| Certificate | CE/ETL/FCC |
